A highly resistant mechanical product
recommended for assemblages subject to intense stress and vibrations.
PART-LOCK® 180° consists in permanently melting nylon on thread parts;
so as to form a dry, ready-to-use insert.
PART-LOCK® 180° is a high-performance product appliable to a specific
area of the screwing tap.
PART-LOCK® 180° is melted into the groove of the thread parts and, as
it complies with the parts’ diameters, it allows the assemblage of
the latter through very precise holes.
PART-LOCK® 180° offers high torque performance and flexibility. It is
indicated in component assemblage procedures where the reuse of
thread parts and their constant tuning is instrumental.
PART-LOCK® 180° withstands many chemical agents (ex: gasoline, oils,
solvents, etc.)

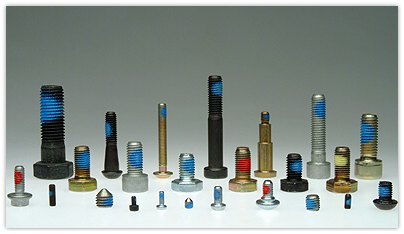

PART-LOCK® 180° can be applied to all types of ferrous and
non-ferrous (stainless steel, brass, aluminium and its alloys, many
plastic products) threads (screws, pins, plugs, studs, bushes,
dowels, safety valves, etc.).
Our engineering department is at one’s disposal to solve, in detail,
any application problem.
TECHNICAL SPECIFICATIONS
|
Denomination
Product type
Colour
Insert application
Blockage in all positions
Vibration resistance
Running temperature
Screw reuse
Resistance to chemical and atmospheric agents
Adjustable torque
Storage
Variable diameters |
PART-LOCK® 180°
Nylon
Blue/red/yellow
180°
Yes
Excellent
-45° + 120°
Can be reused
Excellent
Yes
Unlimited
From 1 mm to 50 mm |
PART-LOCK® 180°
complies with the requirements underscored in the DIN 267 PART 28
regulation (DIN regulation value chart).
